How to Install Interlocking Sports Court Tiles

What this tutorial covers—and what it does not

Interlocking sports court tiles are modular plastic tiles that connect to one another above a separate subsurface. Related terms include modular sports flooring, suspended court tile, and floating court tile. Here, suspended describes the tile structure; it does not mean a raised-access floor or remove the need for a suitable base.

This tutorial begins after a usable subsurface exists. It does not design or build a slab, asphalt pad, drainage system, goal foundation, fence, lighting system, or accessible route. Those elements can affect safety, permits, water movement, and performance and require project-specific professional review.

Manufacturer instructions take priority because locks, panel sizes, layouts, movement behavior, edges, fastening, and approved tools vary. The steps below identify installation decisions without turning one brand’s measurement into a universal specification.

Sources: [1], [3], [6]

Tools and materials to prepare

Check the current installation packet before opening bundles. Confirm the model, colors, marked sections, ramps, corners, spares, and approved fasteners. Inventory cartons or sections, photograph damage, and keep labels in sequence through layout verification.

Cutting or anchoring introduces product-specific risks. Use protection appropriate to the task and follow each tool’s instructions. Do not improvise a blade, drill bit, screw, adhesive, or anchor from another flooring system.

• Tape measure, straightedge, string line or chalk line, and the approved layout drawing
• Broom, vacuum, and other cleaning tools appropriate for the existing base
• Knee pads, work gloves, and a soft non-marking mallet only if the tile manufacturer allows one
• Manufacturer-approved cutting tools for perimeter pieces or fixed obstructions
• Manufacturer-approved ramps, corners, fasteners, anchors, and drill equipment when the design calls for them
• A camera or phone for recording the base, dry layout, clearances, and final inspection

Sources: [1], [3]

Check the subsurface before the first tile

Walk the full area and look for movement, settlement, heaving, loose edges, sharp ridges, contamination, standing water, and abrupt elevation changes. Clean anything that could affect supports or locks. Do not use modular tile to conceal an active structural or drainage problem.

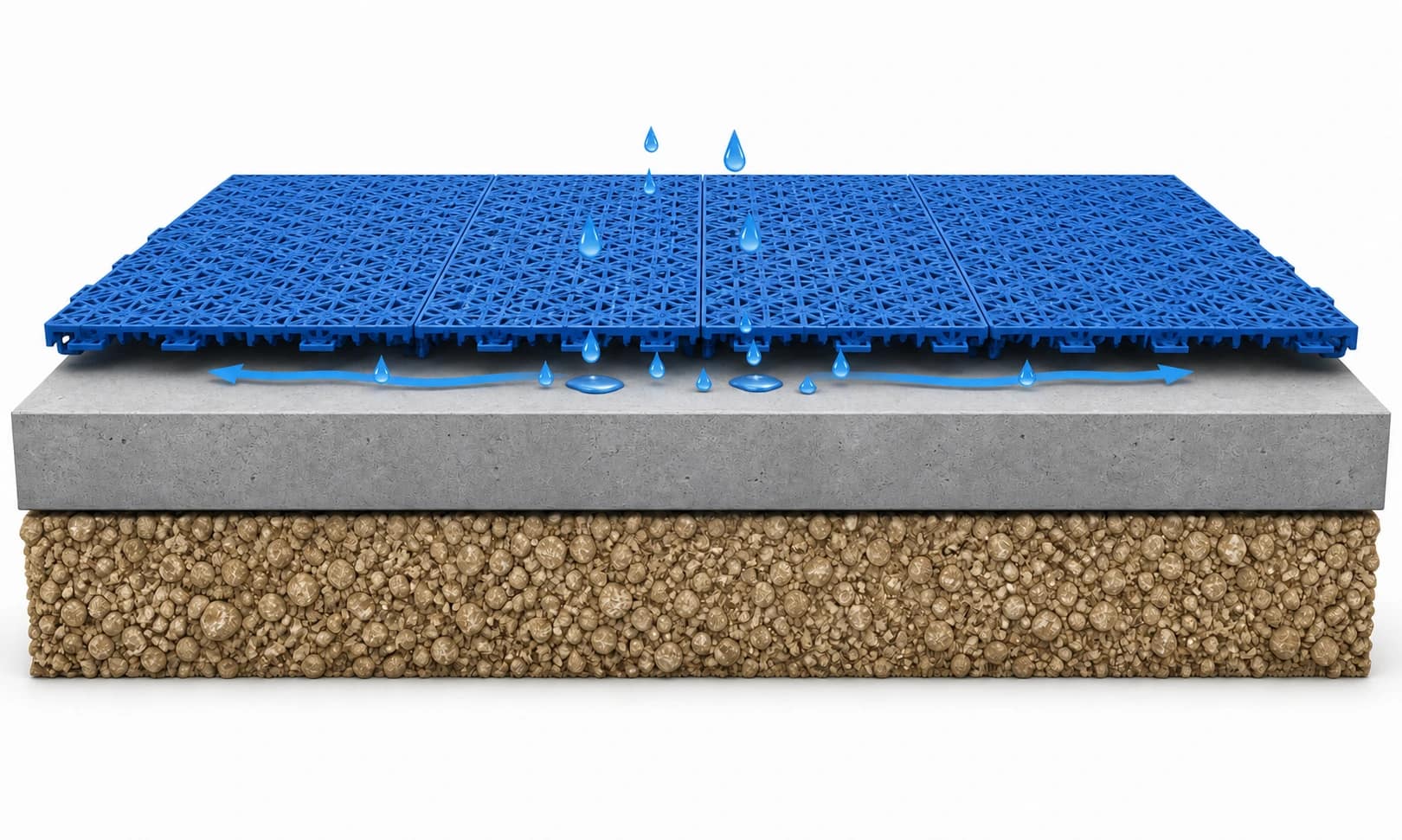

Review water movement under real or simulated conditions. Open-grid tiles may let water pass through the playing surface, but they cannot correct a base that ponds or drains unsafely. Climate and freeze-thaw exposure can also change suitable preparation.

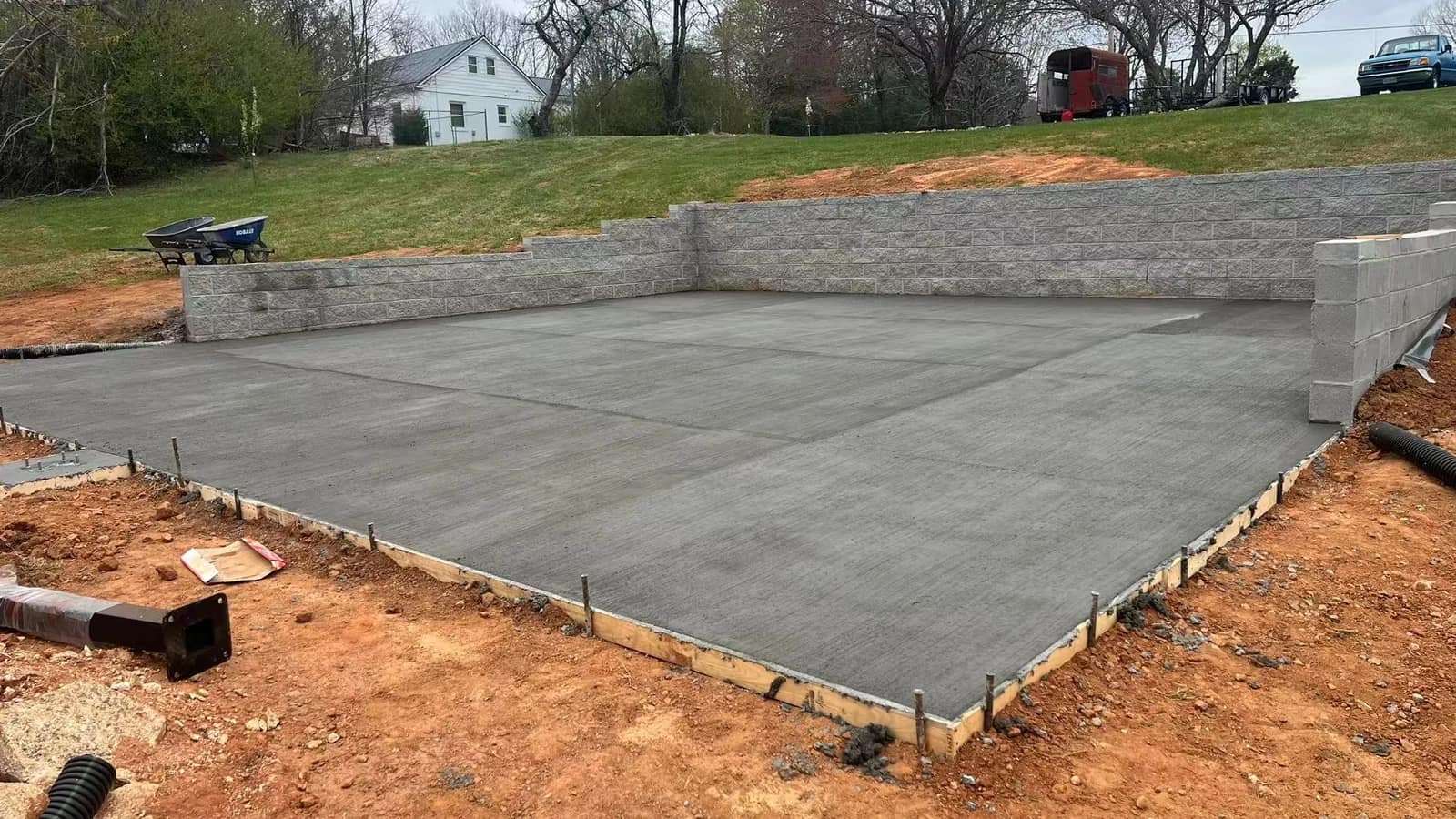

Concrete and asphalt are common court bases, but the material name alone is not approval. The authorized customer example below used a newly placed concrete slab before tile work; it does not prove curing, flatness, slope, drainage, or installation readiness. Confirm the selected manufacturer’s requirements and obtain qualified review for the complete base.

• Stable under load, without loose or collapsing areas
• Clean enough for tile supports and connectors to sit consistently
• Free of sharp projections that could catch a moving tile field
• Draining as intended, without unexplained ponding
• Compatible with the selected product’s written subsurface requirements

Sources: [2], [5]

Verify the layout, quantities, and starting point

Compare the measured usable area with the approved layout. Mark two perpendicular reference axes or the drawing’s centerlines, plus the boundary, posts, drains, walls, equipment, and transitions. Confirm product-specific movement space and ramp room.

For numbered or pre-painted panels, establish the viewpoint and zones, stage cartons by number, and open only the next approved bundle. Keep spares, edges, and corners separate. Count components and resolve damage or shortages before cutting.

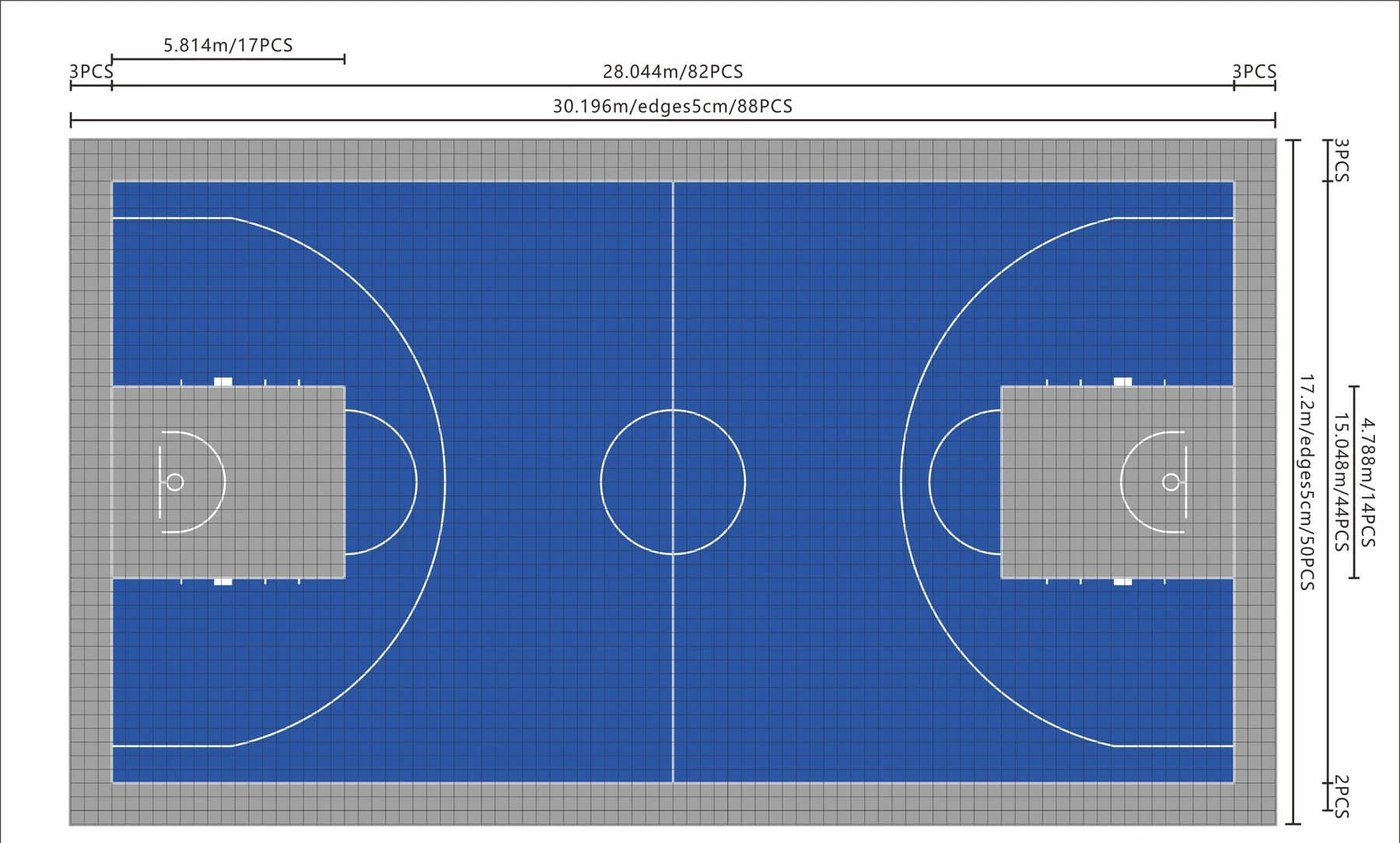

The drawing below is a real Courtily Custom Design example with its internal staff, date, and client fields removed. Its dimensions, piece counts, colors, lines, and edge plan apply only to that project; use the approved drawing supplied for your own order.

Sources: [1], [3], [4]

Confirm the connector orientation before locking the field

Use square reference lines instead of trusting a slab edge. Dry-position the first sections, then compare connector sides, lines, colors, and equipment alignment before an orientation error grows across the field.

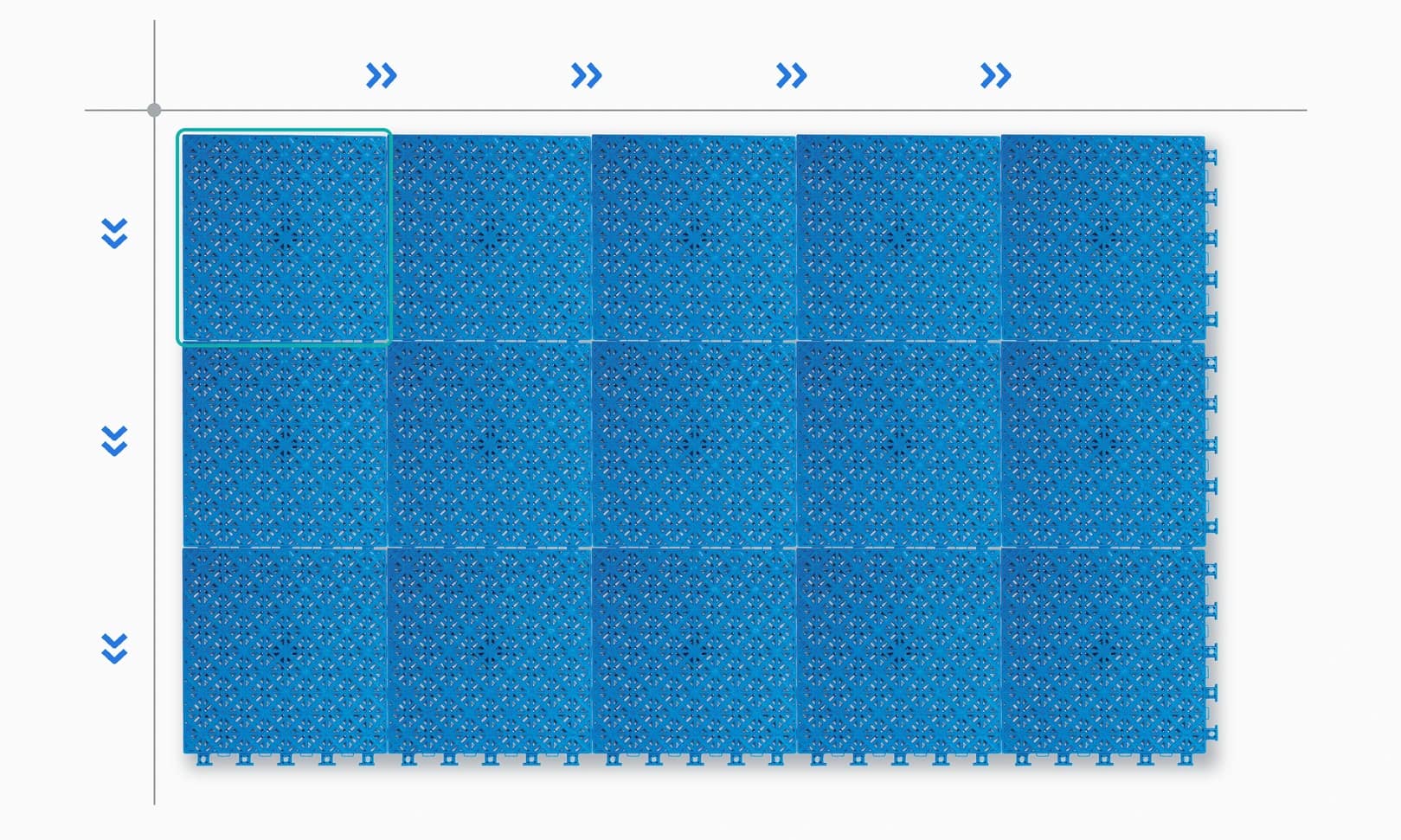

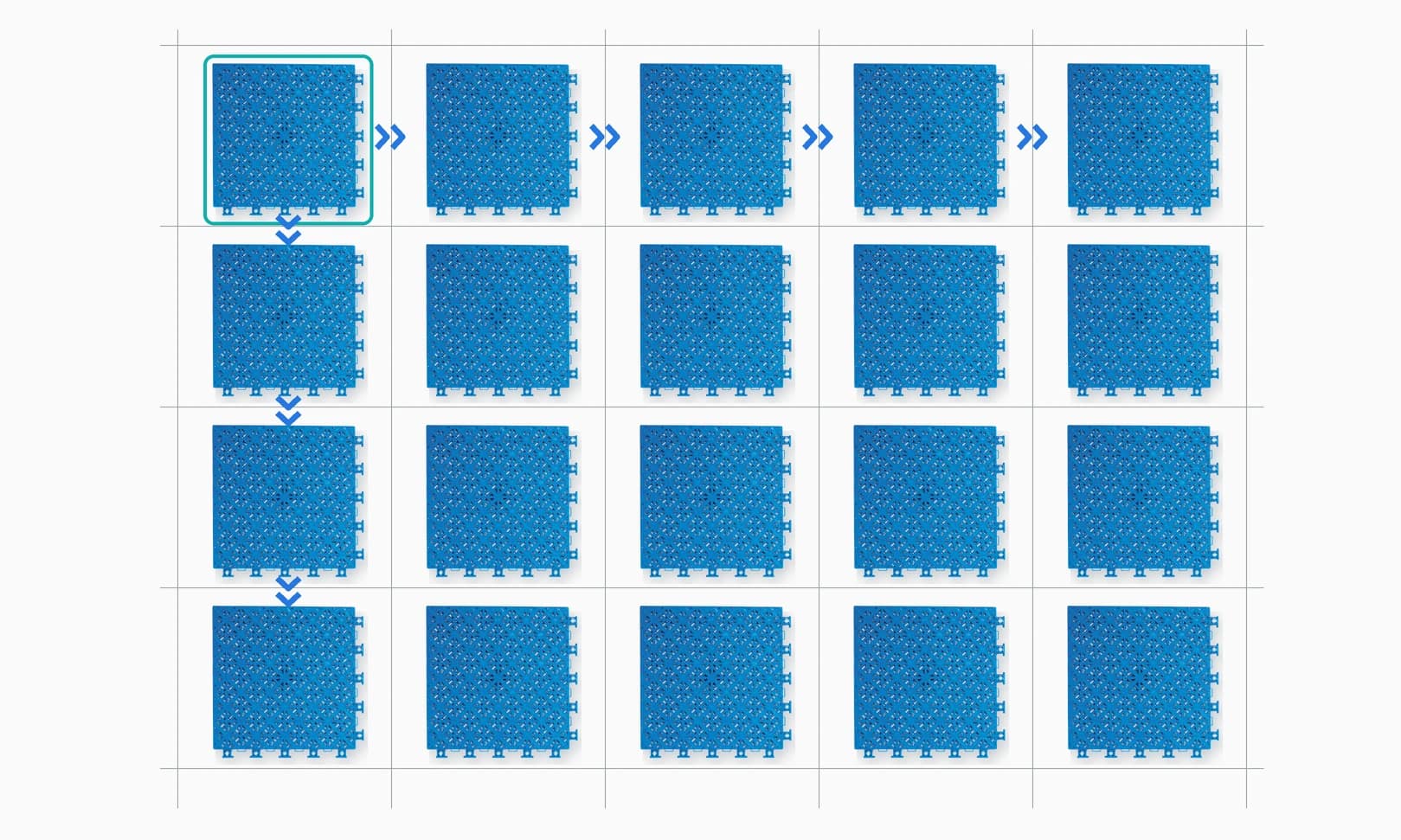

The Arena X300 example marks one possible left-to-right, top-to-bottom sequence. It is not a universal starting corner or connector direction.

Sources: [1], [3], [4]

Install the interlocking court tiles step by step

Work in manageable sections and keep the installation drawing visible. The field should remain free to move as the selected system intends. Do not add adhesive, screws, weights, tight trim, or other restraints unless the current manufacturer instructions explicitly call for them.

1. Stage the materials

   Inventory labeled bundles, spares, edges, and corners. Stage each bundle by its documented zone without blocking drainage or access, and protect painted faces and connectors.

2. Set the first corner

   Place the first tile or panel at the documented starting reference. Check both axes, connector sides, color, line work, and court position before continuing.

3. Dry-lay the next sections

   Position enough material to verify the pattern, lines, equipment relationship, and perimeter space. Check that pre-painted lines continue across planned seams.

4. Lock the first row or section

   Engage the matching connector sides using the technique specified for the product. Apply even, controlled pressure at the joint. If a connector resists, stop and check orientation, debris, or damage instead of forcing it.

5. Continue in the documented sequence

   Open the next numbered bundle and build one row or zone at a time. Recheck axes and markings often; correct drift before a large area must be separated.

6. Keep movement paths open

   As the field approaches walls, posts, drains, or equipment, maintain the clearance specified for the selected system. Do not wedge the tile field tightly against a fixed object or bridge a required drainage opening.

7. Position the complete field before final cuts

   Where cutting is allowed, assemble and center the field first. Mark cuts from the final position, protect the face, use the approved method, and remove sharp edges as directed.

8. Add transitions and approved restraint

   Install the specified ramps and corners after the main field is aligned. If the design requires anchoring, follow the exact edge, spacing, fastener, and substrate instructions. Do not assume that more anchors create a better floating installation.

Sources: [1], [3], [4], [7]

Trim, edge, and anchor without blocking movement

Plastic court tiles move as conditions change, but required clearance depends on tile geometry, field size, exposure, base friction, and manufacturer. Use the current product calculation—not a number copied from another brand. Follow any required temperature conditioning before cutting.

Fit ramps and corners without clamping the field. Anchoring is not universal: some layouts secure a limited edge while others remain unanchored. Incorrect fastening can block intended movement. Escalate wind exposure, public access, unusual geometry, or equipment conflicts to the supplier and a qualified site professional.

Sources: [2], [1], [3]

Complete a final installation inspection

Inspect before play. Walk every row and check support, seams, lines, transitions, and freedom around fixed objects. Reconcile spares with the packing list; retain the final layout, bundle records, and maintenance instructions.

Reinspect after relevant environmental changes. Stop use if tiles buckle, separate repeatedly, rock, create a sharp transition, block water, or move outside the product’s limits.

• All visible connectors are engaged without cracked, distorted, or forced joints
• Rows, color blocks, logos, and game lines match the approved layout
• The field is square and remains within the planned perimeter
• Fixed posts, walls, drains, and equipment retain the required clearance
• Ramps and corners are complete, supported, and free of sharp edges
• Water paths remain open and no new ponding condition is visible
• Cut pieces and approved fasteners match the manufacturer’s instructions
• Spare tiles, layout drawings, product instructions, and inspection photos are retained

Sources: [1], [3]

Common installation mistakes to avoid

Most avoidable problems begin before the center of the court is assembled. Treat the first measurements, base review, and starting orientation as quality-control steps rather than setup chores.

• Covering a moving crack, unstable base, sharp ridge, or drainage failure instead of correcting the underlying issue
• Starting from the wrong viewpoint, mixing numbered bundles, or reversing connector directions, which can misalign painted lines and prevent consistent locking
• Forcing a resistant seam with excessive impact instead of checking orientation, contamination, or damaged locks
• Cutting perimeter pieces before the complete field is positioned and checked
• Copying another brand’s expansion gap, anchor pattern, screw, adhesive, or cutting method
• Fastening multiple sides of a floating field without written approval for that exact system
• Treating open-grid tile as a substitute for a designed base slope or drainage route
• Skipping the final walk-through, ownership records, and manufacturer maintenance instructions

Sources: [1], [2], [3], [4]

How this guide was prepared

This guide compares public guidance from VersaCourt, Matéflex, ModuTile, and USA Pickleball. Shared themes inform the sequence; brand-specific dimensions and fastening rules were not generalized.

Courtily reviewed a 2024 project-specific customer handoff covering numbered cartons, layout zones, centerlines, edge sequencing, and anchoring. Only workflow concepts were retained; its dimensions, tolerances, clearances, drill size, and anchor density were excluded.

Authorized customer media and Courtily layouts remain project-specific; they do not establish base engineering, onsite services, certification, or universal installation values.

Sources were reviewed July 30, 2026. Instructions can change, so retrieve the current manual for the exact product before work begins.

What Courtily verified

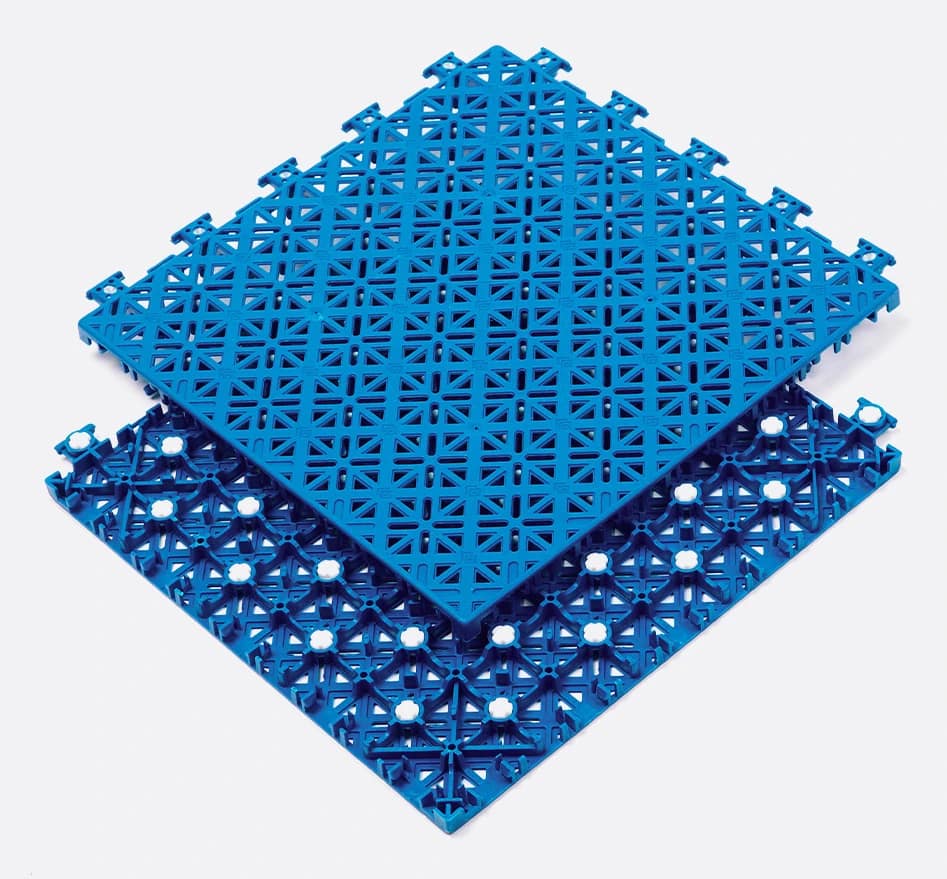

• Arena X300 product visuals use verified Courtily photography and are examples, not universal instructions.
• The concrete-base and finished-court photos are authorized; the finished-court face and outfit use fictional AI-generated alternatives.
• The embedded customer video documents one Courtily product project and is not presented as a universal installation method.
